Road Stud
| Model No. | CTO28449 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 26 views |
US$ 3~11 /Piece | Get Latest Price
Product Detailed Description
- Product Description

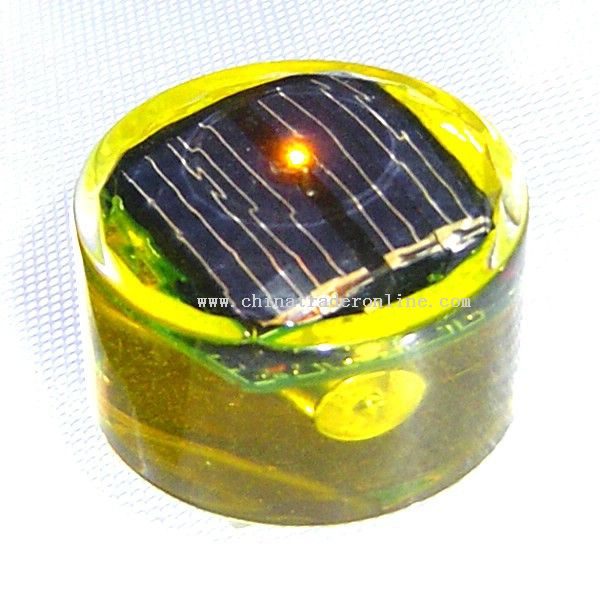

- Solar Plastic Road Stud (Battery)_
- Arc shape, more solid body, different LED Color
- Size: DIA50*32 (25.5+6.5)mm
- Color: White, Yellow, Green, Red, Blue
- Weight: 69g
- packaging: In carton. 1pcs/carton, Carton size: 5.5*5.5*3.5cm, 280000pcs/20FT container
- MOQ: 100pcs
Key features:
Only 6.5mm up-ground surface make it could stand snow plough
Round design creates good appearance while relieving the impaction from traffic load so as to be durable
Shell adopts one-off molding, greatly improving its Compression resistance. Solar panel, electronics and optics are fitted inside Material of shell, dustproof and unbreakable up to International Standard IP68.
Technical features:
Item Description
Solar cell Type Mono crystalline
Voltage 2V
Current 50A
Battery Type Heat-resistance Ni-MH
Voltage 1.2V
Capacity 300MAH(Flash) 800Mah(steady)
Circle life 1000 circle(over 3 year)
Work temperature -20C - +70C
LED frequency 4Hz or steady
Size Φ5mm
Number 1pcs
Color White, yellow, red, blue, green
Flash way Blink or steady
Luminous intensity 8000-10000mcd
Control circuits IC
Operating time Standard charged in the sun for 8 hours available for 72 hours blinking lighting and 32 hours constant lighting
Starting intensity 500 LUX
Life in use 3 year
Warrant 1year
Material of body shell: PC
Material of body inside Epoxy glue
Water proof IP68
View distance: Over 300m
Installation Procedure:
- 1. Check if the solar stud charge and discharge in normal way;
- 2. Identify the place and distance for installation and clean road surface;
- 3. Clean the bottom of the solar stud and stick it onto the road surface;
- 4. Steady it with two screws if road condition is bad such as sandy road.
- 5. Dont put them into use till 4 hours later when they are completely dry.
