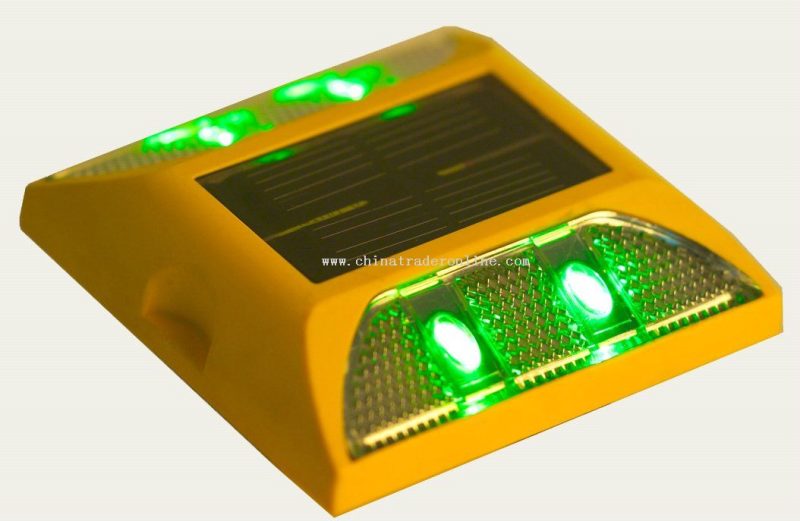

Solar Road Stud

Product Detailed Description

• Product Description
• Solar Road stud,
• 3 Year life, 1 year warrantee

• Size: 105*105*25mm
• Weight: 260g
• MOQ: 100pcs

Key features:

• 1. Perfect performance on directing for two lighting way combination
• 2. Anti-heat battery can undertake high temperature even on the equator.
• 3. High seal technology guarantees the elements inside to be separated well against water in super strong compressive resistance FRP shell.

Technical specification:

• Item Description
• Solar cell Type Mono crystalline

• Voltage 4V
• Current 65MA
• Battery Type Heat-resistance Ni-MH
• Voltage 2.4V
• Capacity 600MAH(Flash) 800Mah(steady)
• Circle life 1000 circle(over 3 year)
• Working temperature -20C-+70C
• LED frequency 4Hz or steady
• Size Φ5mm
• Number 2X2PCS
• Color White, yellow, red, blue, green
• Luminous intensity 5000mcd
• Control circuits IC

Operating time (single-side) charged in the sun for 8 hours available for 72 hours blinking lighting and 32 hours constant lighting

• Compression resistance over 10 Ton
• Starting intensity 500 LUX
• Application situation Edge line
• Life in use 3 year
• Warrant 1 year
• Material of body shell: FPR
• Material of solar panel shell: PC
• Material of reflector Acrylic
• Water proof IP68
• View distance: Over 500m
• Installation Procedure:
• 1. Check if the solar stud charge and discharge in normal way;
• 2. Identify the place and distance for installation and clean road surface;
• 3. Clean the bottom of the solar stud and use epoxy glue to stick it onto the ground;
• 4. Dont put solar studs into use till 4 hours later when they are totally dry...
