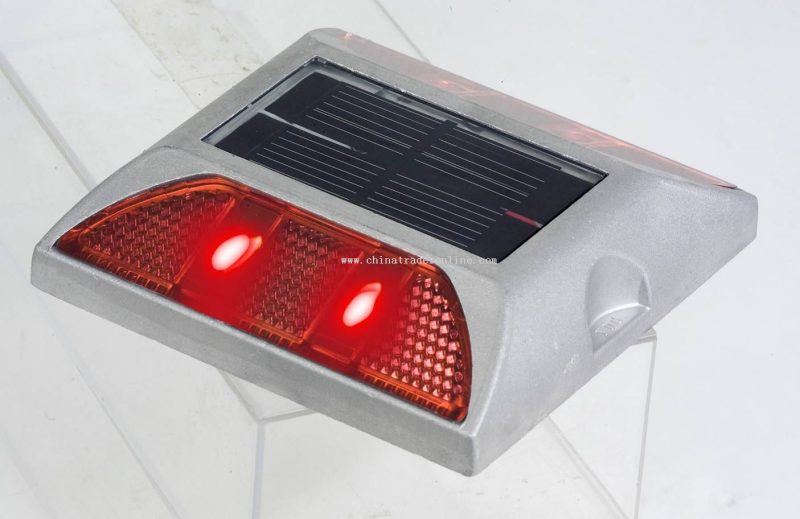

Solar Road Stud
| Model No. | CTO28450 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 108 views |
US$ 4~12 /Piece | Get Latest Price
Product Detailed Description
- Product Description
- Solar Aluminum Road Stud(Battery)
- _with both LED solar and reflector
- Size: 105*105*25mm
- Weight: 0.4kgs
- Package: 36pcs/Carton, Size: 38*27*28cm, 32600pcs/20FT CTNR
- MOQ: 100pcs
- Key features:
- 1. Combine active radiation by solar energy with passive reflecting light by reflectors.
- 2. Anti-heat battery can undertake high temperature even on the equator.
- 3. High seal technology guarantees the elements inside to be separated well against water in super strong compressive resistance aluminum shell.
- Technical specification:
- Item Description
- Solar cell Type Mono crystalline
- Voltage 4V
- Current 65MA
- Battery Type Anti-heat Ni-MH
- Voltage 2.4V
- Capacity 600MAH(Flash) 800Mah(steady)
- Circle life 1000 circle(over 3 year)
- Working temperature -20C-+70C
- LED frequency 4Hz or steady
- size Φ5mm
- number 2X2PCS
- Color White, yellow, red, blue, green
- Luminous intensity 8000-10000mcd
- Control circuits IC
Operating time (single-side) charged in the sun for 8 hours available for 72 hours blinking lighting and 32 hours constant lighting
- Compression resistance over 10 Ton
- Starting intensity 500 LUX
- Application situation Edge line
- Life in use 3 year
- Warrant 1 year
- Material of body shell: aluminum alloy
- Material of solar panel shell: PC
- Material of reflector Acrylic
- Material of body inside Epoxy glue
- Water proof IP68
- View distance: over 500m
- Installation Procedure:
- 1. Check if the solar stud charge and discharge in normal way;
- 2. Identify the place and distance for installation and clean road surface;
- 3. Clean the bottom of the solar stud and stick it onto the ground;
- 4. Dont put solar studs into use till 4 hours later when they are totally dry.
