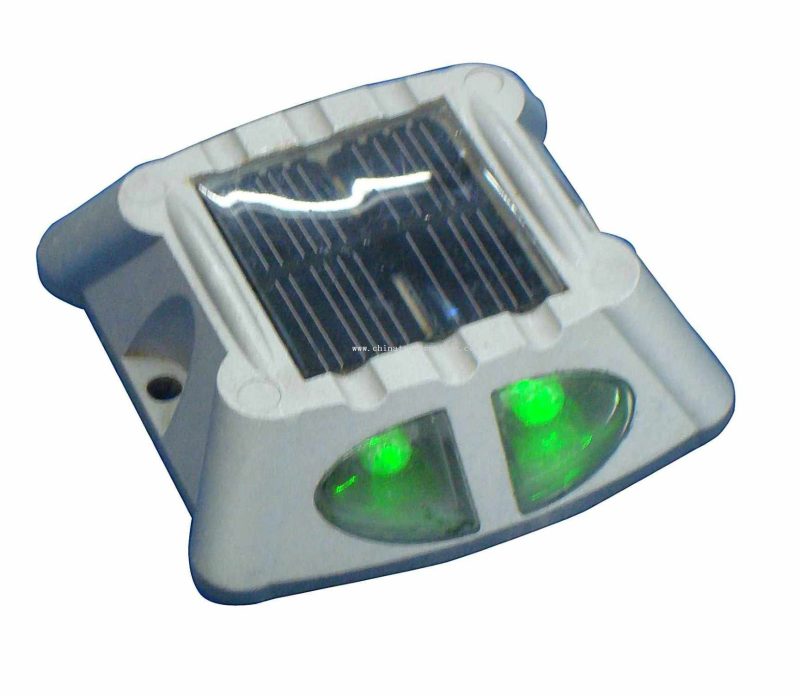

Solar Road Stud
| Model No. | CTO28452 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 56 views |
US$ 3~22 /Piece | Get Latest Price
Product Detailed Description
- Product Description
- Solar Road Stud - Battery)
- 3 years life, 1 year warrantee
- Size: 112*100*33mm
- Weight: 0.53kgs
- Package: 30pcs/carton, Carton size 38*27*28cm, 32600pcs/20FT
- MOQ: 100pcs
Key features:
1. Perform well on pressure resistance for solid structure, filled with epoxy inside.
2. There is aluminum support between two LEDs so that LED part is not be broken by vehicles.
3. Two reinforced veins are designed on the top edges of it to not only strengthen compression resistance but also protect the solar panel against compression from traffic loads
4. Solar panel, electronics and optics are fitted inside waterproof and unbreakable
5. Two screw holes are designed on both sides so as to make it more stable into the ground.
Technical specification:
Item Description
Solar cell Type Mono crystalline
Voltage 4V
Current 65MA
Battery Type Heat-resistance Ni-MH
Voltage 2.4V
Capacity 600MAH(Flash) 800Mah(steady)
Circle life 1000 circle(over 3 year)
Working temperature -20C-+70C
LED frequency 4Hz or steady
Size Φ10mm
Number 2X2PCS
Color White, yellow, red, blue, green
Luminous intensity 8000-10000mcd
Control circuits IC
Operating time (single-side) charged in the sun for 8 hours available for 72 hours blinking lighting and 32 hours constant lighting
Compression resistance over 10 Ton
Starting intensity 500 LUX
Application situation Edge line
Life in use 3 year
Warrant 1 year
Material of body shell: Aluminum alloy
Material of solar panel shell: PC
Material of LED shell: PC
Material of body inside Epoxy glue
Water proof IP68
View distance: Over 500m
Installation Procedure:
- 1. Check if the solar stud charge and discharge in normal way;
- 2. Identify the place and distance for installation and clean road surface;
- 3. Clean the bottom of the solar stud and stick it onto the ground;
- 4. Steady it more with two screws if road condition is bad such as sandy ground.
- 5. Dont put solar studs into use till 4 hours later when they are totally dry.
