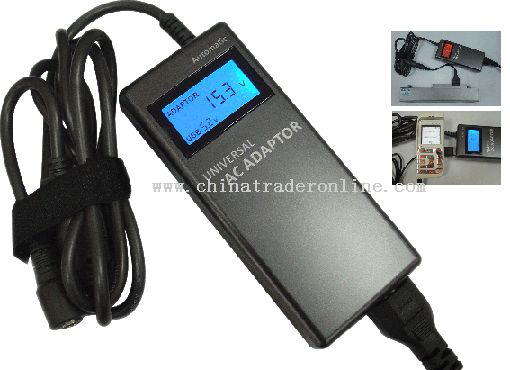

Detailed Product DescriptionMulti Function Laptop AC
Adapter & Laptop
Charger Specification:
Input: AC 100V~260V 1.8A 50~60Hz
Output: Adapter: DC 12V~22V 5A(MAX) 90W
Charger: DC 12.6V, 16.8V 3A
USB: DC 5V 1A(MAX) 5W
Product description:
1. Supply power for Laptop computer,
LCD Monitor and other equipment;
2. Charge laptop battery separate from laptop;
3. Supply power or Charge for Mobile phones, Digital
Camera,
MP4,
MP3,
IPod and other
Related device with standard USB output;
4. LCD screen displays the charging and power status with red and blue dual-colors;
5.15 exchangeable DC connectors for more than 100 models of laptops and LCD monitor;
6. Provides a wide range of output voltage: 5V, 12V, 12.5V, 14.5V, 15V, 16V, 18.5V, 19V,
19.5V, 20V, 22V;
7. Worldwide use with input between 100~265V;
8. With advanced MCU micro-computer chip control, humanity design makes the operation
Much easier. All the switches are
Automatic, such as switching to the indicated output
Voltage, switching to charging function, and indicating battery charging status;
9.100, 000 level of anti-static design, high temperature and fir-proof crust makes it safer;
10. Passed MBTR 5000H test and own its patent with more reliable quality warranty;
11. Safety protection:
Over temperature protection reaches at 85C;
Over voltage protection reaches at 24V;
Over current protection reaches at 6.5A, and have Short circuit protection & charging Time protection.
