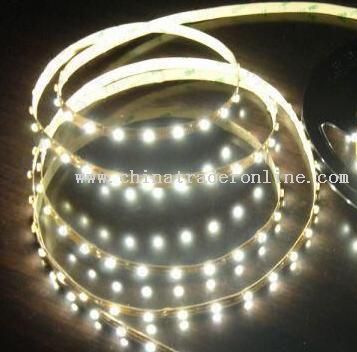

Waterproof 5050 SMD Led strip

Detailed Product Description
Features

1. This product adopts a kind of super flexible PCB as base which makes soldering points is steady. There are 3 chips in each 5050 SMD LED. The LEDS are evenly arranged on the board.

2. Every three LEDs as one unit can be cuttable

3. Self-adhesive 3M label in the back, fix it firmly as your requirement.

4. The 5050 SMD have excellent color blending, high intensity, large viewing angle, good quality.

5. The PCB size can be custom-made according to the customers requirement

6. End of strip is soldered with flying leads for customer wiring use.

7. 5 meters per roll.

8. Each 5 meters need 12vdc and 100watts of transformer.

9.Controller: RC12-200




Specifications

LED Strip
LED Type:5050 SMD LED
LED NO:60 pcs per meter
Voltage:DC12V/DC24V
Current:60mA
Power Consumption:7.2W/m

IP Rate: IP45

Lumens: Max.174 lm

Controller: RC12-200

Size:1000*10*2mm



Recommended Applications




1. Architectural decorative lighting and backlighting for homes, hotels, marketplaces, bars etc

2. Auditorium walkway lighting, indoor illuminated signs and advertisements

3. Illumination lighting using walkway, canopy, stairway accent lighting, amusement park

4. Car interior and exterior lights

5. Channel letter lighting using for stores, restaurants, bars
