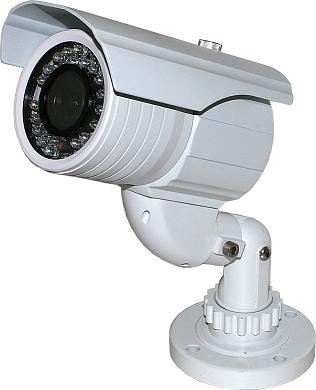

Varifocal Camera function Features:
• Sony/Sharp ccd opitional
• 36 pcs F8 IR LED
• Night vision 50m
• With varifocal 4-9mm lens
• Adjust focal length and focus outside
• Line embedded in the bracket
|
Model No. |
YA-Z806G | ||
|
Camera Type |
Color 3X Zoom Vandal Proof IR Dome Camera | ||
|
Image Sensor |
1/3 Inch SONY Super HAD CCD | ||
|
Effective Pixels |
PAL:752(H) x582(V) 440K |
PAL:500(H) x 582(V) 290K | |
|
NTSC:768(H) x494(V) 380K |
NTSC:510(H) x 492(V) 250K | ||
|
Sensing Area |
4.9mm x 3.7mm | ||
|
Signal System |
PAL /NTSC | ||
|
Horizontal Resolution |
480 TVL LINES |
480 TV Lines |
420 TV Lines |
|
Min. Illumination |
0.3 Lux/F1.2(IR OFF) |
0.3 Lux/F1.2(IR OFF) | |
|
Lens Mount |
3x 4-9mm Varifocal Synch Focus Lens/F1.4 | ||
|
S/N Ratio |
More Than 48dB (AGC Off) | ||
|
Electronic Shutter |
1/50(1/60) ~ 1/10,000 Sec. | ||
|
White Balance |
|||
|
AGC |
Auto | ||
|
Infrared Luminary |
36 pieces IR-LED | ||
|
Infrared Wavelength |
850 nm | ||
|
Illuminate Distance |
More than 50 M | ||
|
Waterproof Criterion |
IP66 | ||
|
I/O Connector |
Power : DC Power Jack , Video Output : BNC | ||
|
Video Output Level |
1.0 V p-p (75 Ohms, composite) | ||
|
Supplied Voltage |
DC12V Voltage | ||
|
Power Consumption |
IR On: 340mA max., IR Off: Less than 130mA | ||
|
Product Size |
120 x 85mm | ||
|
Package Size |
275x235x115 | ||
|
Weight(Gross) |
Approx. 0.8kg | ||
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 1.5kg (3.31lb.)
- Package Size:
- 30cm x 25cm x 15cm (11.81in x 9.84in x 5.91in)
