surveillance equipment

Product Name: surveillance equipment

Model No.:CTO56515

U.Price: Negotiable

Price Terms: FOB

Payment Terms:T/T

Delivery Lead Time: Negotiable

Product Origin: China

Detailed Product Description
Description

Main Features:

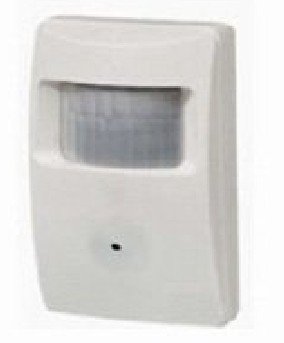

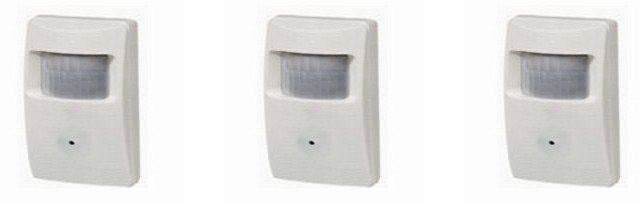

PIR Style Camera

Pinhole lens 3.7mm

420/480/540TVL optional

Specifications:

Camera Type	Color PIR Style Camera
Image Sensor	1/3 Inch SONY SuperHAD CCD	1/3 Inch SHARP CCD	1/4 Inch SONY SuperHAD CCD	1/4 Inch SHARP CCD
Effective Pixels	PAL:500(H) x 582(V) 290K NTSC:510(H) x 492(V) 250K
Sensing Area	4.9mm x 3.7mm		3.6mm x 2.7mm
Signal System	PAL /NTSC
Horizontal Resolution	420 TV Lines
Min. Illumination	0.5 Lux/F1.2		0.8 Lux/F1.2
Lens Mount	Pinhole lens 3.7mm
S/N Ratio	More Than 48dB (AGC Off)
Electronic Shutter	1/50(1/60) ~ 1/10,000 Sec.
White Balance	Auto
AGC	Auto
I/O Connector	Power : DC Power Jack , Video Output : BNC
Video Output Level	1.0 Vp-p (75 Ohms, composite)
Supplied Voltage	DC12V Voltage
Power Consumption	Less than 130mA
Dimensions	60 x103 x4mm
Weight	Approx. 0.20kg
