Product Name: BIPV MODULE 80W
Model No.:CTO31355
U.Price: Negotiable
Price Terms: FOB
Payment Terms:T/T
Delivery Lead Time: Negotiable
Product Origin: China
Detailed Product Description
BIPV MODULE 80W
Two layers glass laminate with silicon cells in the center, which makes it can
accept more sunshine and have a better efficiency rate. Also, it can be use as
the window of buildings.

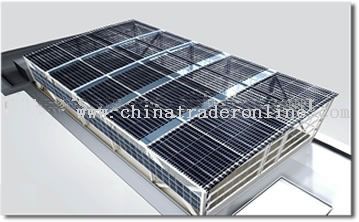

Specification of picture above:
Photovoltaic technology: Mono & Polycrystalline 125mm square
Power: 80W
Size: 1190mm x 530mm x 8mm
Maximum Power Voltage: 18V
Maximum Power Current: 4.4A
Open Circuit Voltage: 21.6V
Short Circuit Current: 4.7A
Heres a list of the companys BIPV solutions, taken right from their website:
Just Roof--Ideal for gabled and pitched roof
Melty Roof--PV module with snow melting function
Re Roof--Ideal for tiled roofs
Photovol Roof--The original BIPV roof
Light Thru type--Glass with highly aesthetic finish
Photovol Glass--Designed in tandem with architects
The Just Roof series would be the typical retrofit for many existing homes. When
installed, all previous roofing materials are removed, and the panels become the
new roof, complete with weatherproofing. Melty Roof is the same design, only
with an added snow melting feature.
The Re Roof is better for flat or tiled roofs, and can either be installed for
new construction or installed as a retrofit. The Photovol Roof adds to
aesthetics by blending the panel color directly into the roof.
