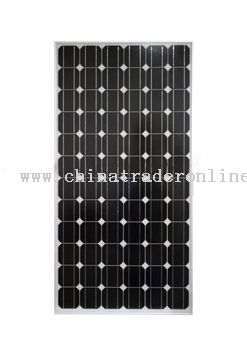

MONO CRYSTALLINE SOLAR PANEL 180W

Detailed Product Description
MONO CRYSTALLINE SOLAR PANEL 180W

Detailed Product Description

Parameters/Type/Silicon: CR160MP CR170MP CR175MP CR180MP
Mono-crystalline silicon solar panel
Maximum Power :(Watt) 160W 170W 175W 180W
Production Tolerance: ±5%
Maximum Power voltage: (V) 35 36 36.1 36.6
Maximum Power current: (A) 4.58 4.73 4.82 4.92
Open circuit voltage: (V) 43.7 44 44.1 44.3
Short circuit current: (A) 5.06 5.17 5.21 5.29
size of module (high and wide): 1580x808x50mm
frame (type, material and thickness): Al. alloy frame, 50mm thickness
cell manufacturer : CEEG
number of cells: 72
size of cells (wide and high): 125x125mm
Weight per piece:(Kg) 16.2
type of junction box : PV junction box
cable type and length: NANYANG(4.0MM2) PV cable, 900mm
connector type: GZX plug type 0601
maximum system voltage: 1000V
temperature coefficient of Isc : (0.03+/-0.01)%/
temperature coefficient of Voc: 0.36+/-0.02)%/
temperature coefficient of power: -0.5%/
temperature coefficient of Im: +0.05%/
temperature coefficient of Vm: -0.34%/
NOCT (Nominal operating cell temperature): 48(+2)
Insulation: >=100MOhm
Voltage Standoff: AC2000V, DC3000V
Wind Bearing: 60m/s(200kg/sq.m)
Impact Resistance Hail Impact Test: 227g steel ball fall down from 1m height
CONVERSION EFFICIENCY: Cell CONVERSION EFFICIENCY >14.2%
Quality guarantee: 2 years product warranty and 20 years -20% of power
Certification: IEC,TUV,CE,ROHS,LVD
Packing: 36pcs/pallet,504pcs/40 container
