Product Name: Road Stud
Model No.:CTO28449
U.Price: Negotiable
Price Terms: FOB
Payment Terms:T/T
Delivery Lead Time: Negotiable
Product Origin: China
Road Stud enquête
Detailed Product Description

Product Description

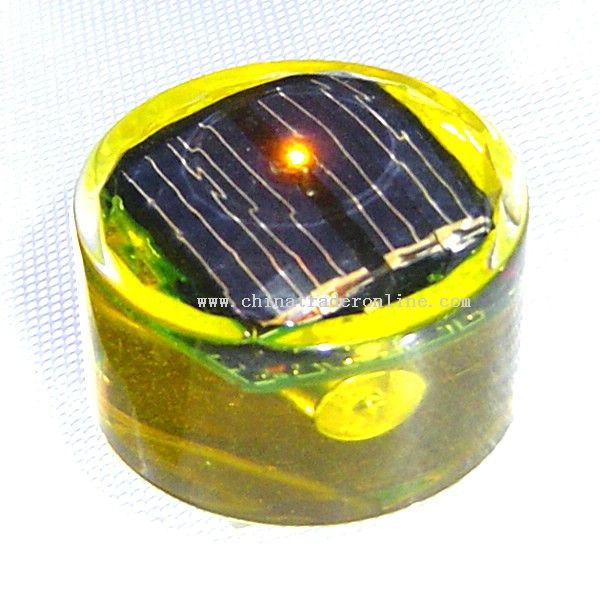

Solar Plastic Road Stud (Battery)_
Arc shape, more solid body, different LED Color
Size: DIA50*32 (25.5+6.5)mm
Color: White, Yellow, Green, Red, Blue
Weight: 69g
Packing: In carton. 1pcs/carton, Carton size: 5.5*5.5*3.5cm, 280000pcs/20FT container
MOQ: 100pcs

Key features:
Only 6.5mm up-ground surface make it could stand snow plough
Round design creates good appearance while relieving the impaction from traffic load so as to be durable
Shell adopts one-off molding, greatly improving its Compression resistance. Solar panel, electronics and optics are fitted inside Material of shell, dustproof and unbreakable up to International Standard IP68.

Technical features:
Item Description
Solar cell Type Mono crystalline
Voltage 2V
Current 50A
Battery Type Heat-resistance Ni-MH
Voltage 1.2V
Capacity 300MAH(Flash) 800Mah(steady)
Circle life 1000 circle(over 3 year)
Work temperature -20C - +70C
LED frequency 4Hz or steady
Size Φ5mm
Number 1pcs
Color White, yellow, red, blue, green
Flash way Blink or steady
Luminous intensity 8000-10000mcd
Control circuits IC
Operating time Standard charged in the sun for 8 hours available for 72 hours blinking lighting and 32 hours constant lighting
Starting intensity 500 LUX
Life in use 3 year
Warrant 1year
Material of body shell: PC
Material of body inside Epoxy glue
Water proof IP68
View distance: Over 300m

Installation Procedure:
1. Check if the solar stud charge and discharge in normal way;
2. Identify the place and distance for installation and clean road surface;
3. Clean the bottom of the solar stud and stick it onto the road surface;
4. Steady it with two screws if road condition is bad such as sandy road.
5. Dont put them into use till 4 hours later when they are completely dry.
