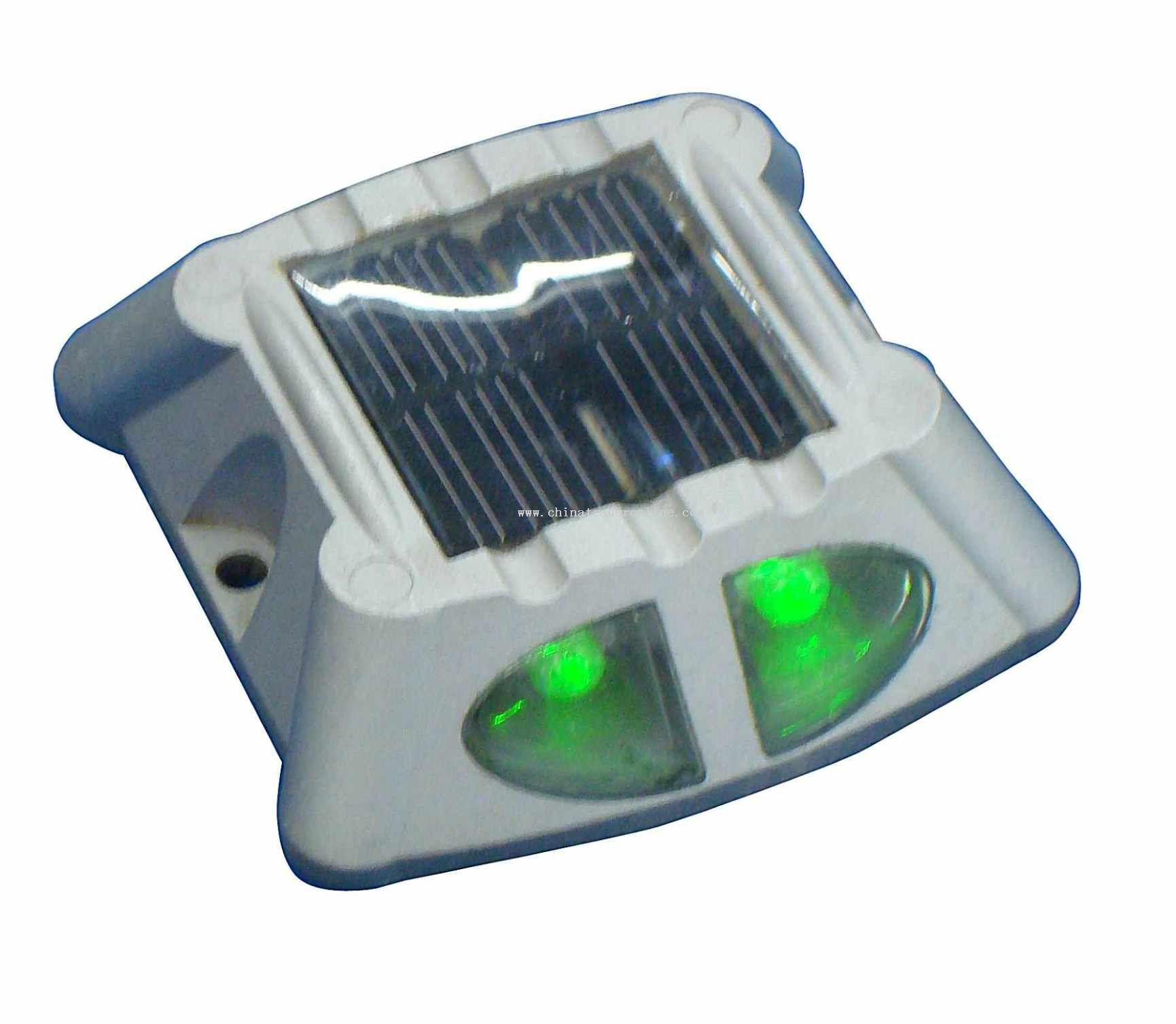

Solar Road Stud

Product Description
Solar Aluminum Road Stud(Battery)

_with both LED solar and reflector

Size: 105*105*25mm

Weight: 0.4kgs

Package: 36pcs/Carton, Size: 38*27*28cm, 32600pcs/20FT CTNR

MOQ: 100pcs

Key features:

1. Combine active radiation by solar energy with passive reflecting light by reflectors.

2. Anti-heat battery can undertake high temperature even on the equator.

3. High seal technology guarantees the elements inside to be separated well against water in super strong compressive resistance aluminum shell.

Technical specification:

Item Description

Solar cell Type Mono crystalline

Voltage 4V

Current 65MA

Battery Type Anti-heat Ni-MH

Voltage 2.4V

Capacity 600MAH(Flash) 800Mah(steady)

Circle life 1000 circle(over 3 year)

Working temperature -20C-+70C

LED frequency 4Hz or steady

size Φ5mm

number 2X2PCS

Color White, yellow, red, blue, green

Luminous intensity 8000-10000mcd

Control circuits IC

Operating time (single-side) charged in the sun for 8 hours available for 72 hours blinking lighting and 32 hours constant lighting

Compression resistance over 10 Ton

Starting intensity 500 LUX

Application situation Edge line

Life in use 3 year

Warrant 1 year

Material of body shell: aluminum alloy

Material of solar panel shell: PC

Material of reflector Acrylic

Material of body inside Epoxy glue

Water proof IP68

View distance: over 500m

Installation Procedure:

1. Check if the solar stud charge and discharge in normal way;

2. Identify the place and distance for installation and clean road surface;

3. Clean the bottom of the solar stud and stick it onto the ground;

4. Dont put solar studs into use till 4 hours later when they are totally dry.
